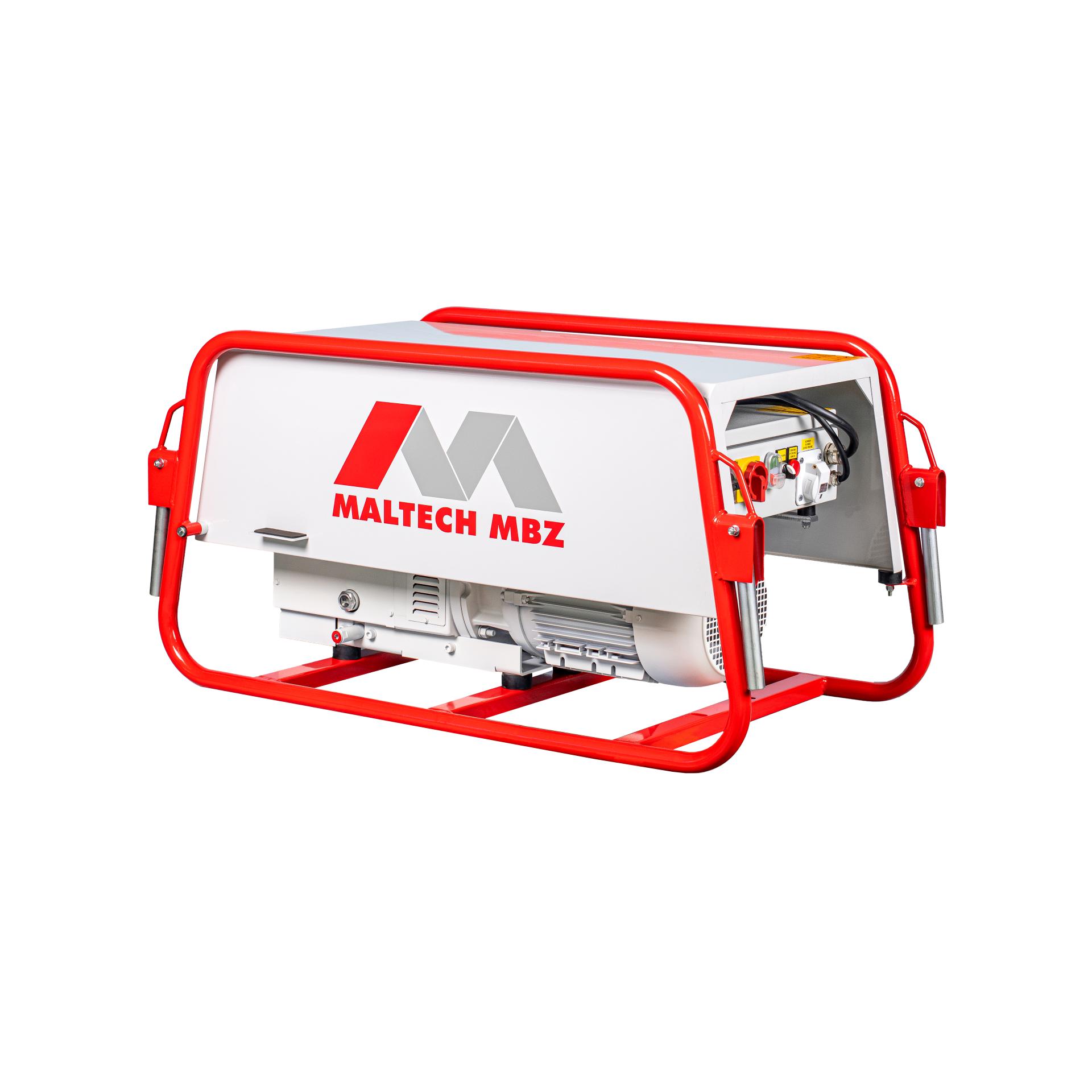

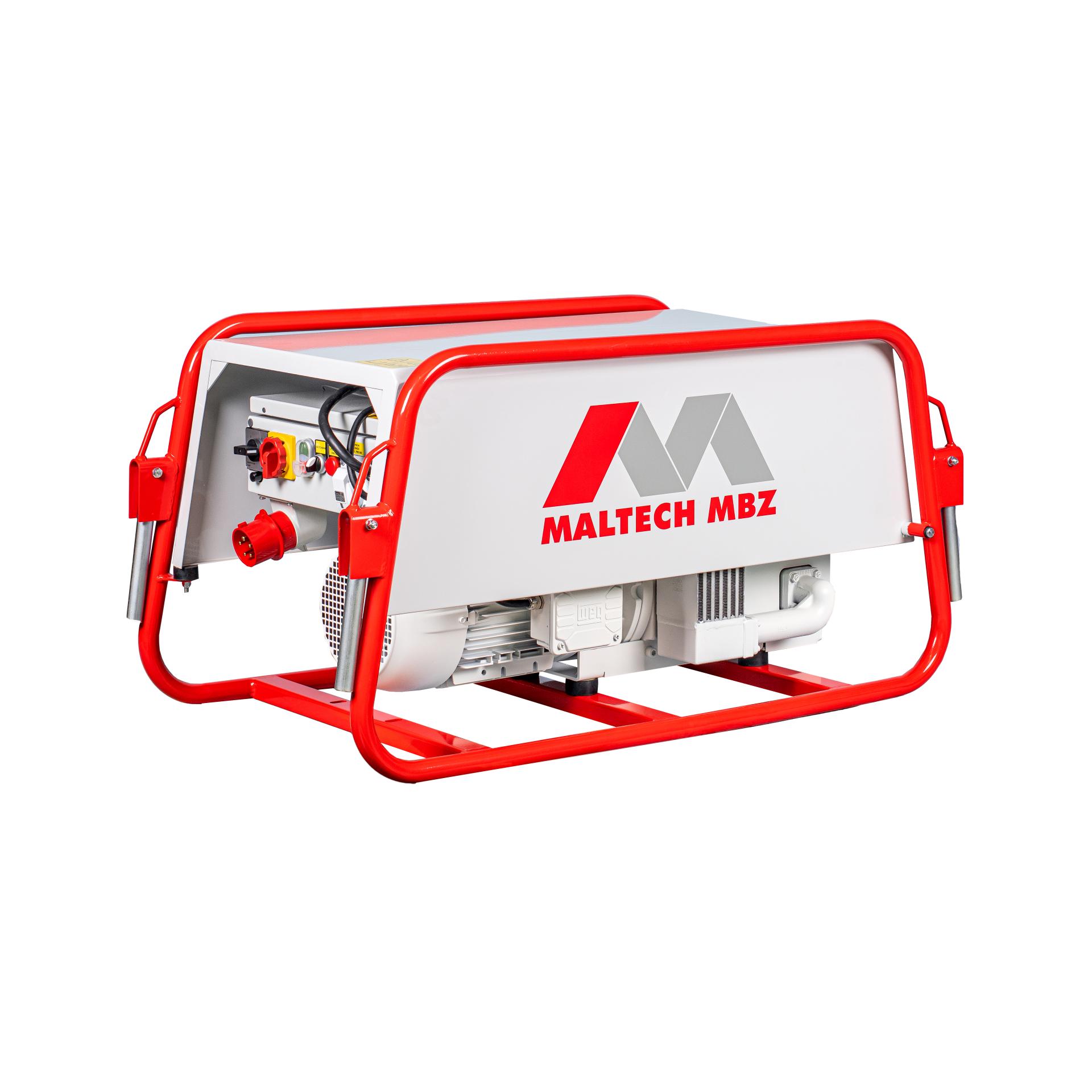

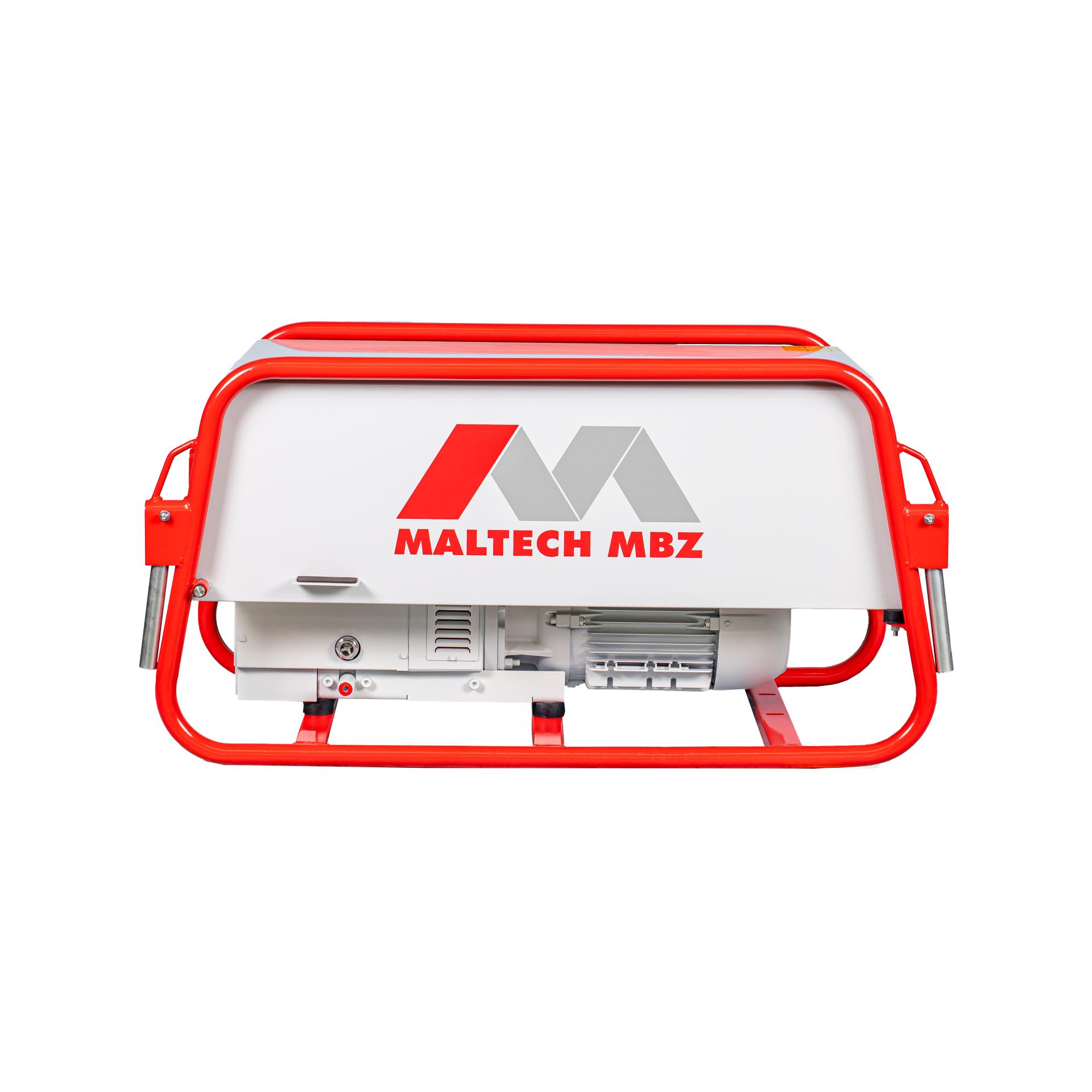

MBZ

Pneumatic conveyor systems by professionals

The conveyor systems of the Maltech MBZ series are ideal for material transport (of dry plaster, gypsum, mortar and many more) from all standard containers to the plastering machine. Transportation via the automatic conveying system happens automatically, continuously and virtually oil-free. With its high quality and longevity, the pneumatic conveyor system MBZ is the ideal machine for all customers who appreciate top-class products.

Facts
Pneumatic silo conveyor systems for the transport of pre-mixed plaster and mortar from non-pressurized silos to the plastering machine.

Innovation
Automatic disconnection after transportation

Features
  • Automatic feeding of all common plastering machines or continuous mixers from non-pressurized silos
  • Applicable to all types of mortar and plaster
  • Increased performance due to enlarged conveying pot and bigger conveying nozzle
  • Adjustable conveyor nozzle for light and heavy material
  • With phase sequence relay and relay for sensor delay
Max range* approx. 60-80 m
Conveying pressure max. 2.5 bar
Compressor capacity
 Claw compressor 140 m³/h
 7.5 kW 400 V
 Air part oil-free
Virtually oil-freegreased coupling

*Approximate values that may vary according to type and consistency of the material in use.
Width
560 mm
Length
1200 mm
Height
620 mm
Total weight
187 kg

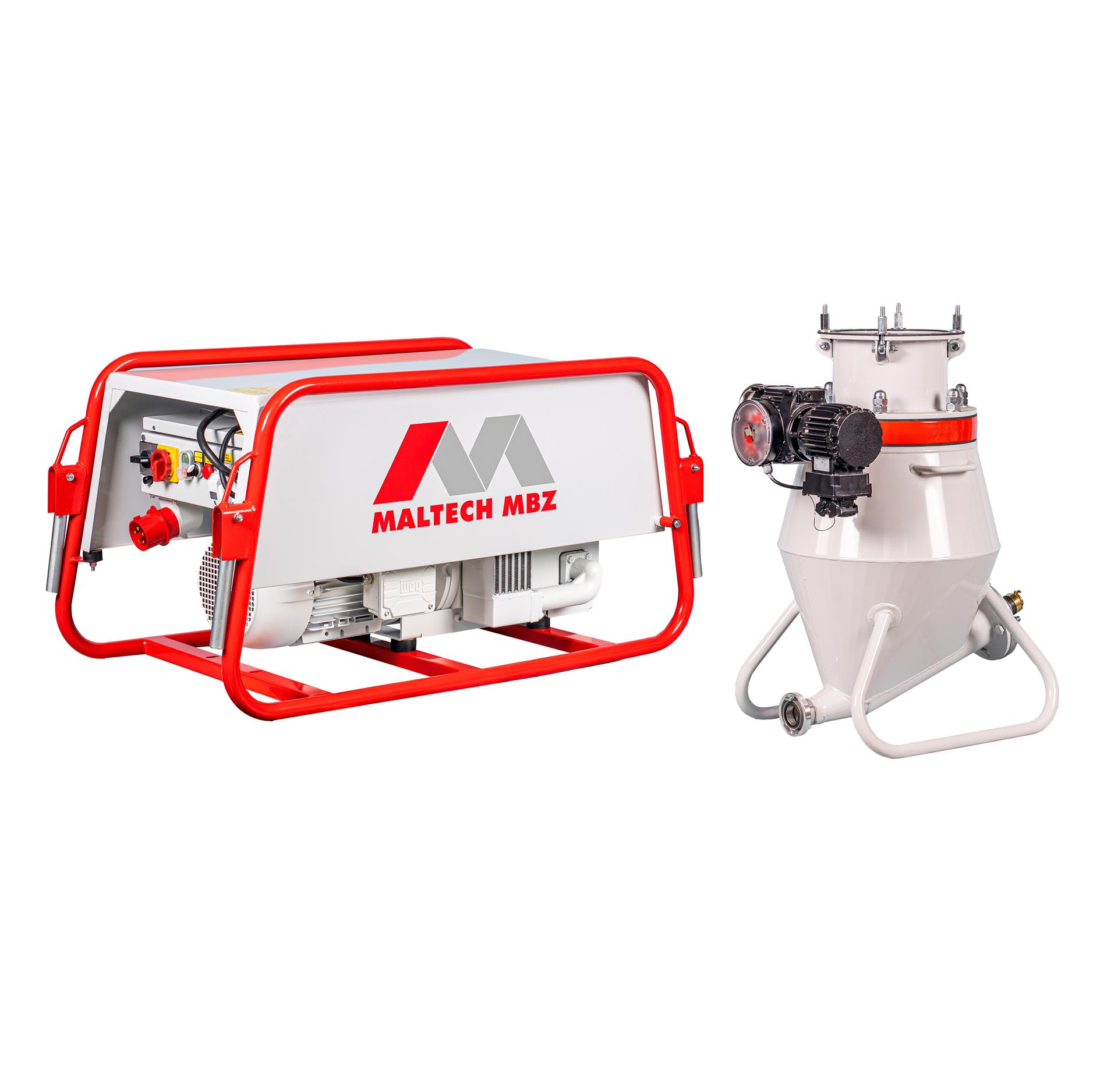

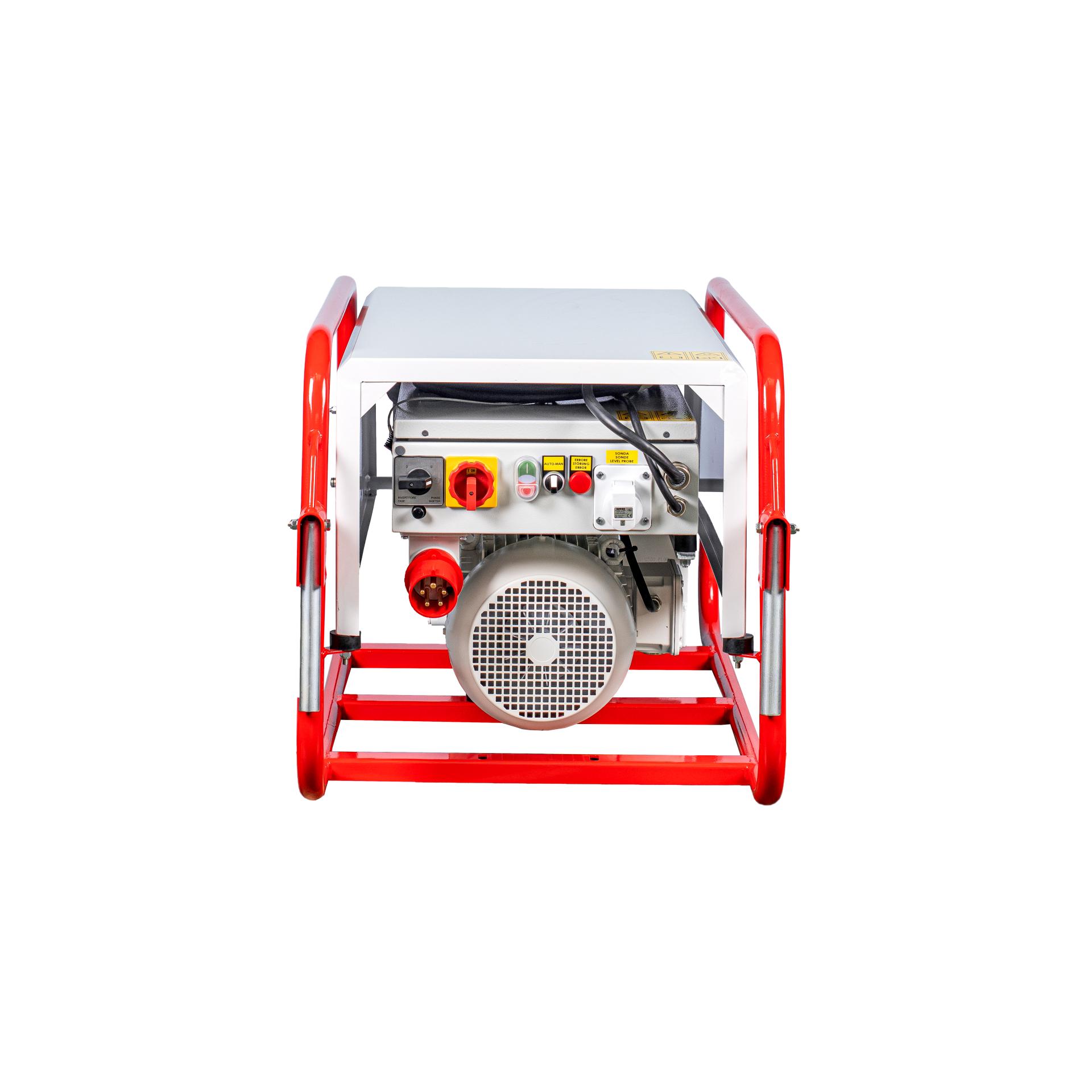

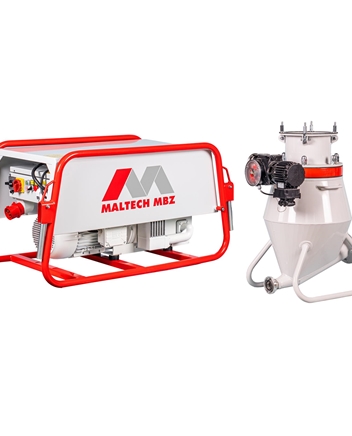

Compressors with control panel

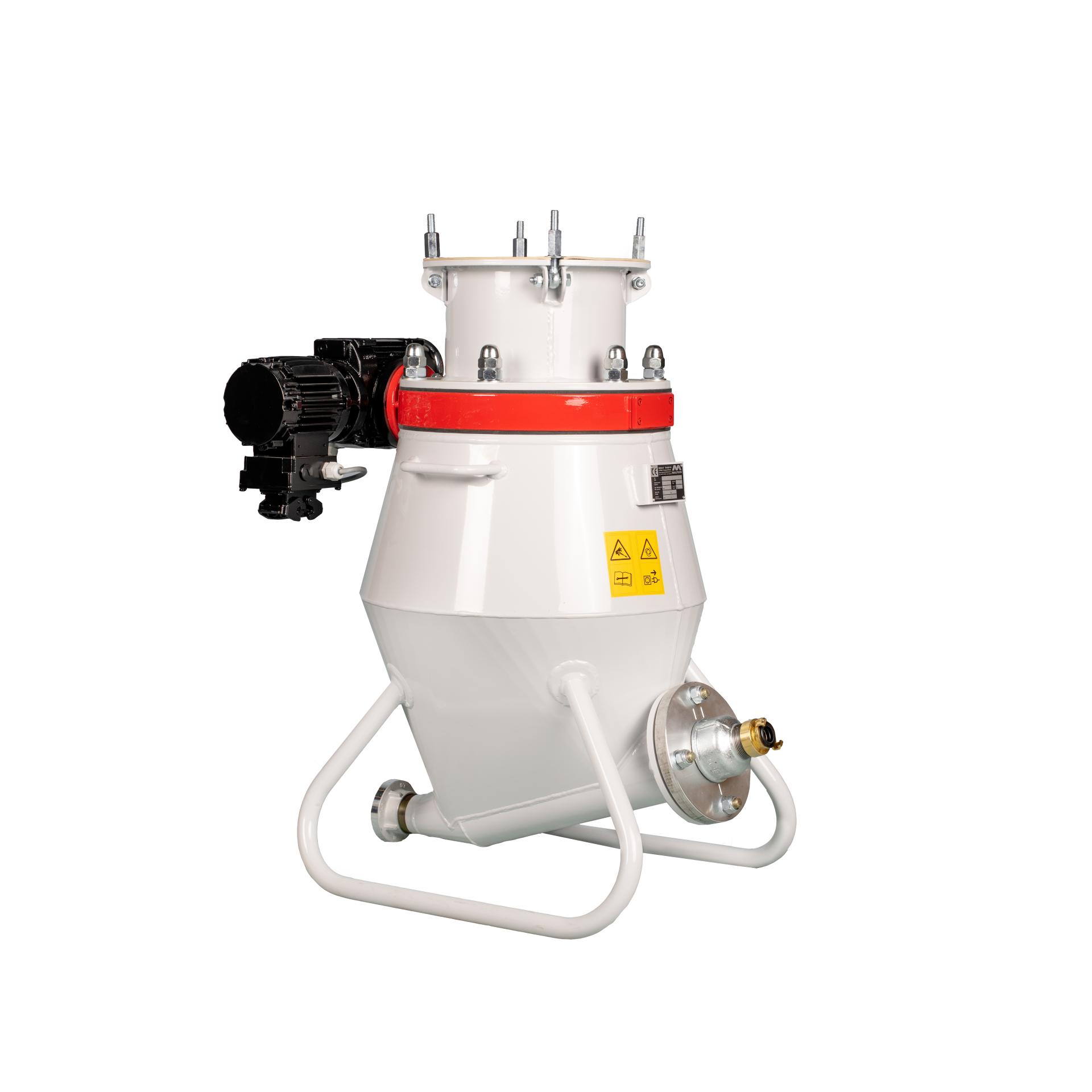

Conveying pot with actuator and shut-off valve
Feed hood with level indicator and exhaust air filter
Mortar hose 50 m, C-coupling
Control cable
 50 m
