Plasterjet

The versatile conveying pump – just in case

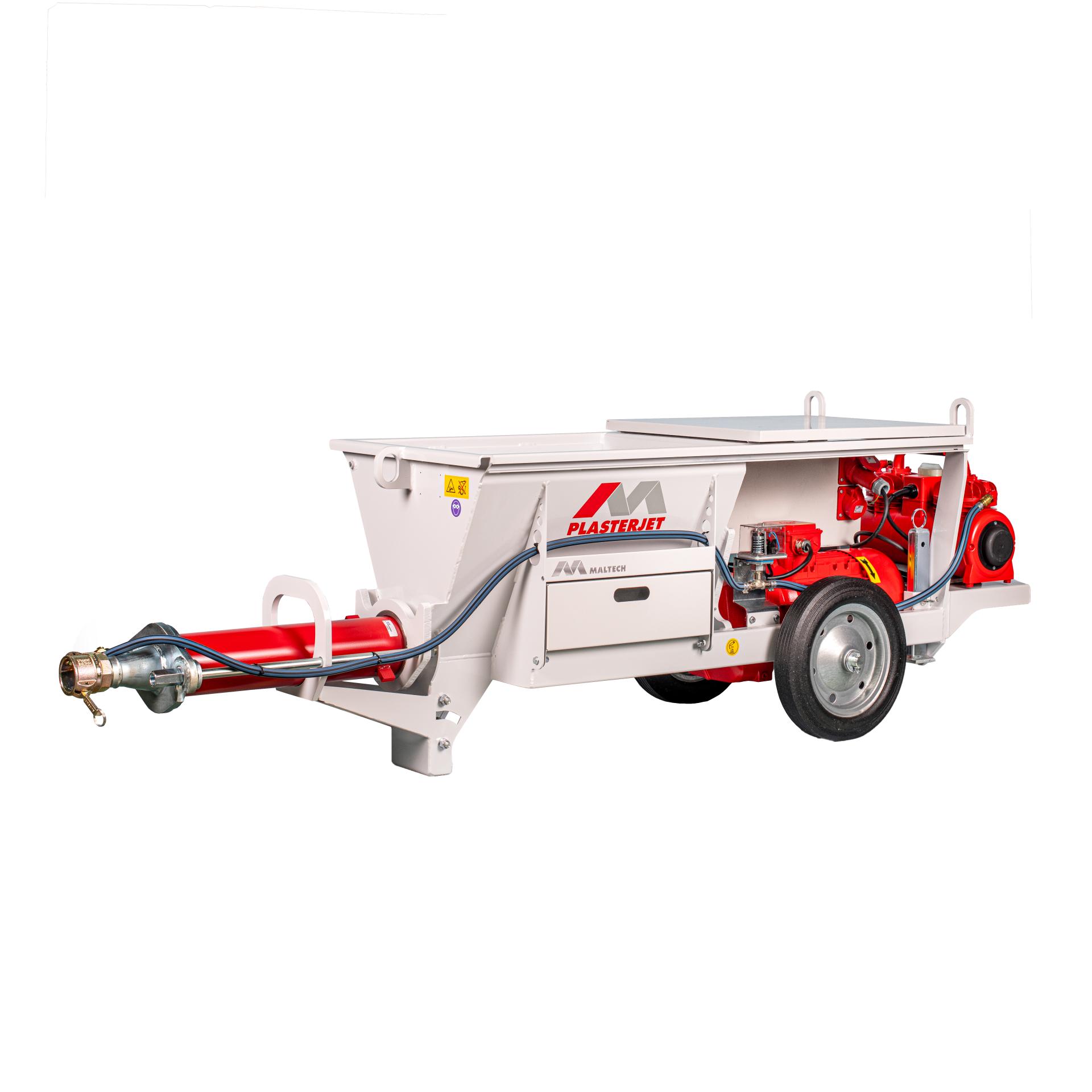

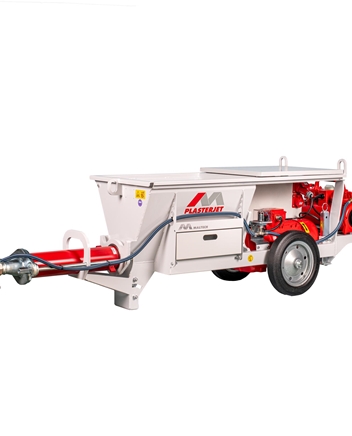

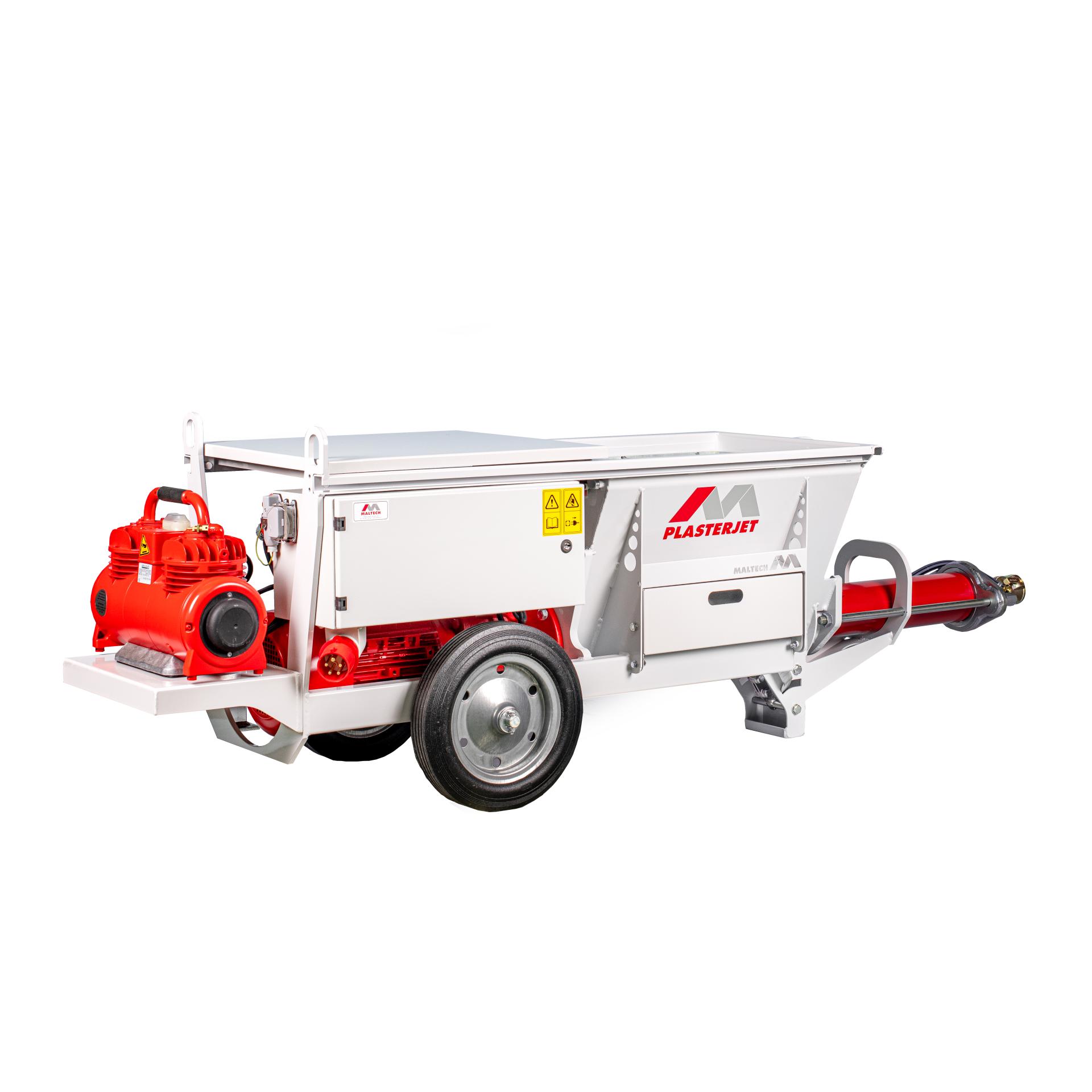

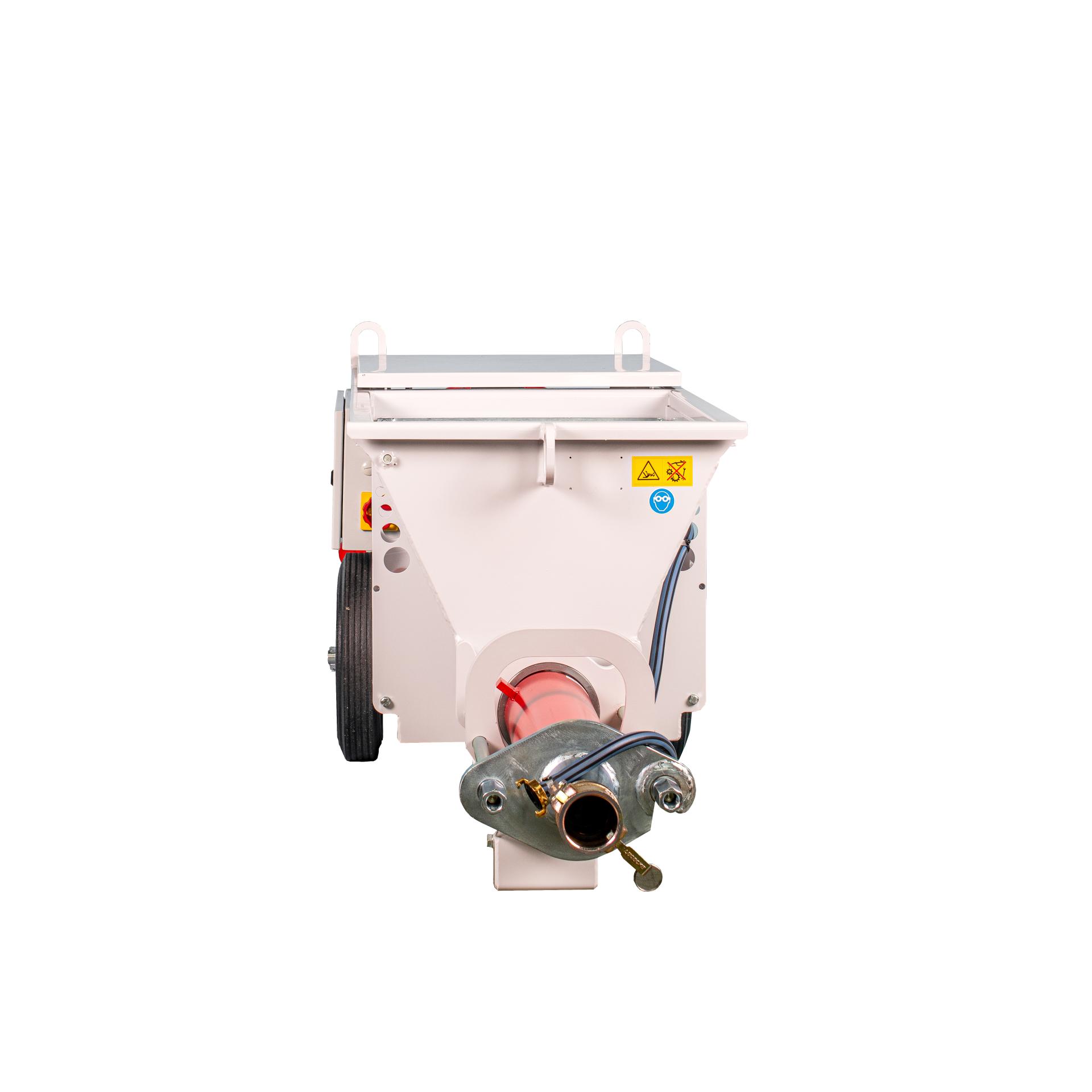

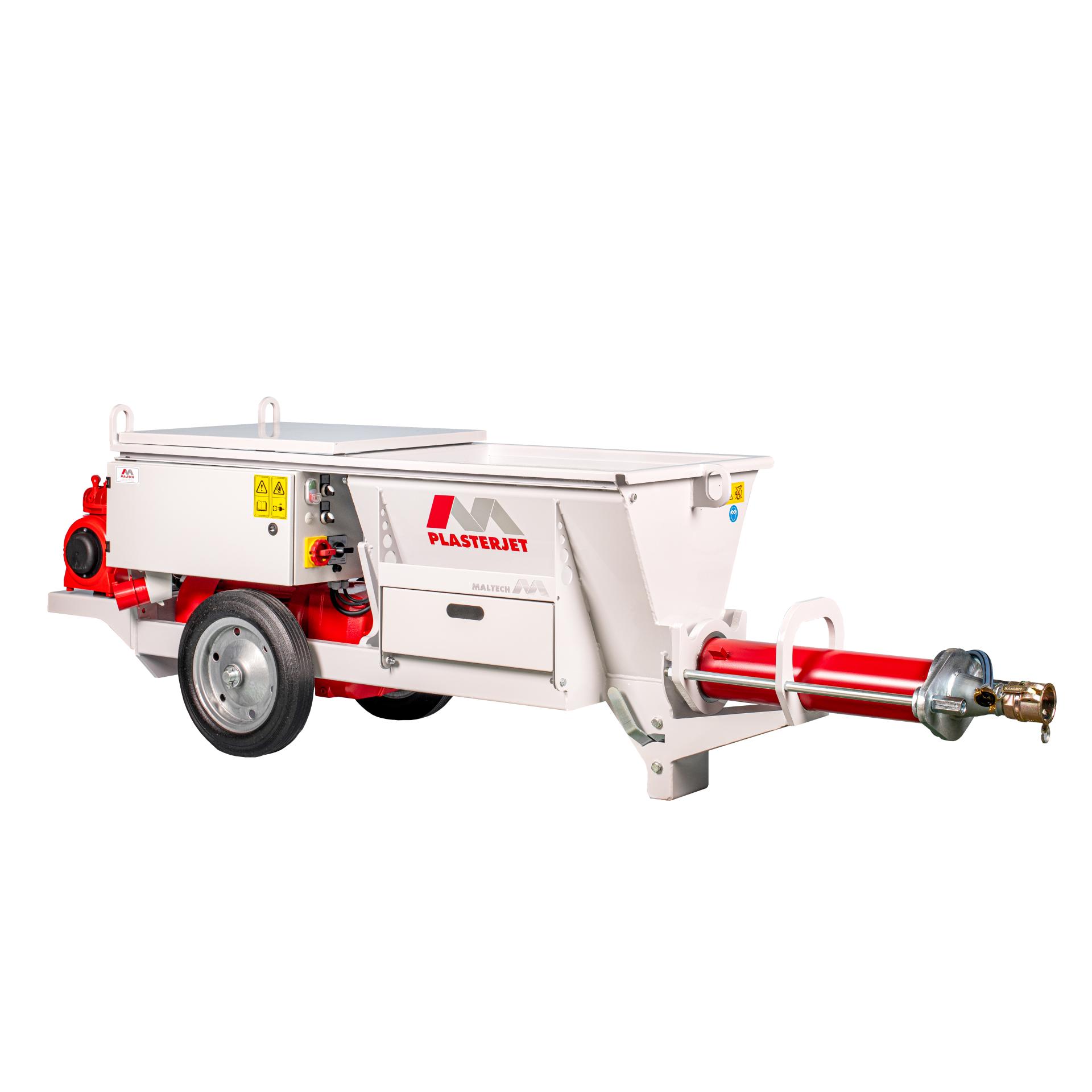

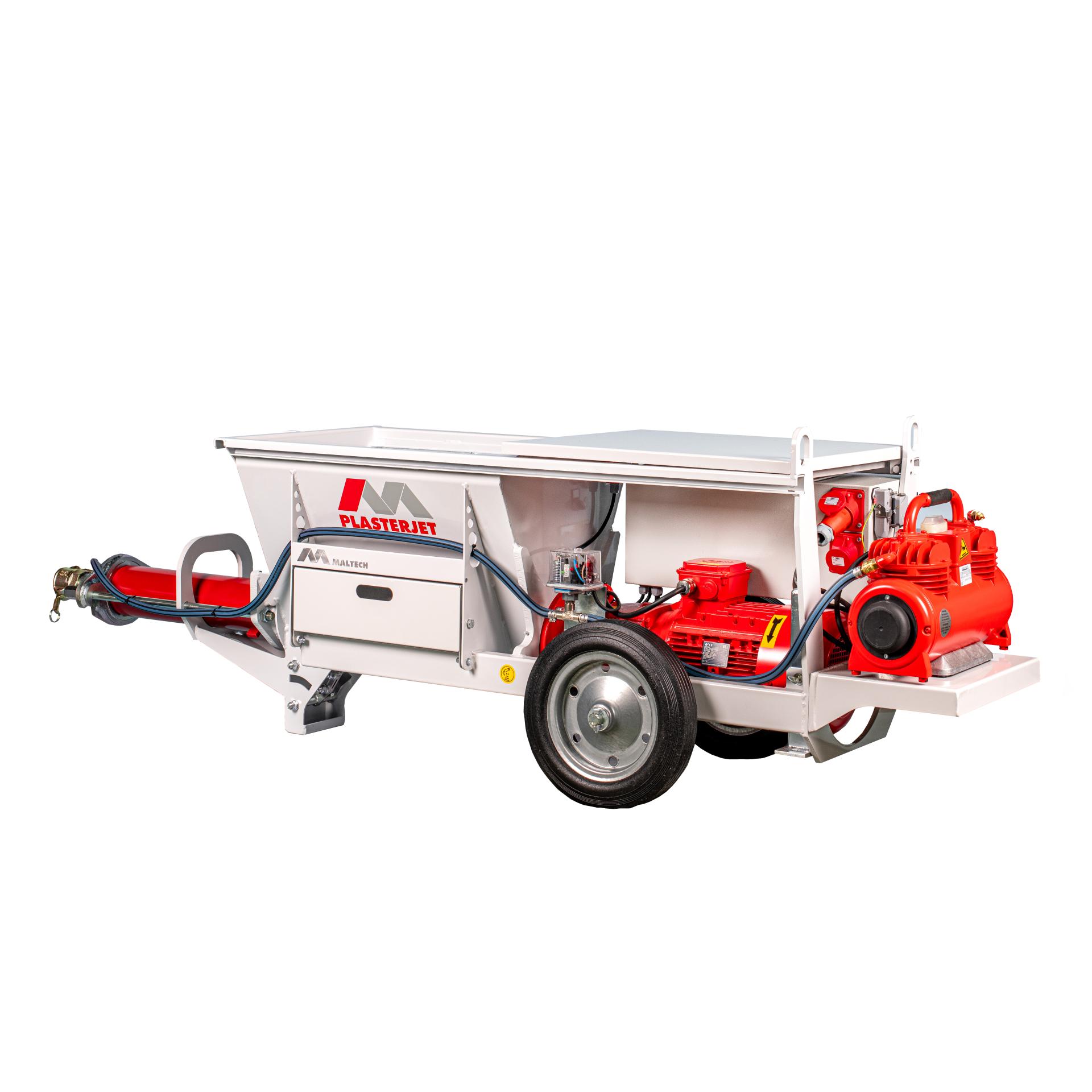

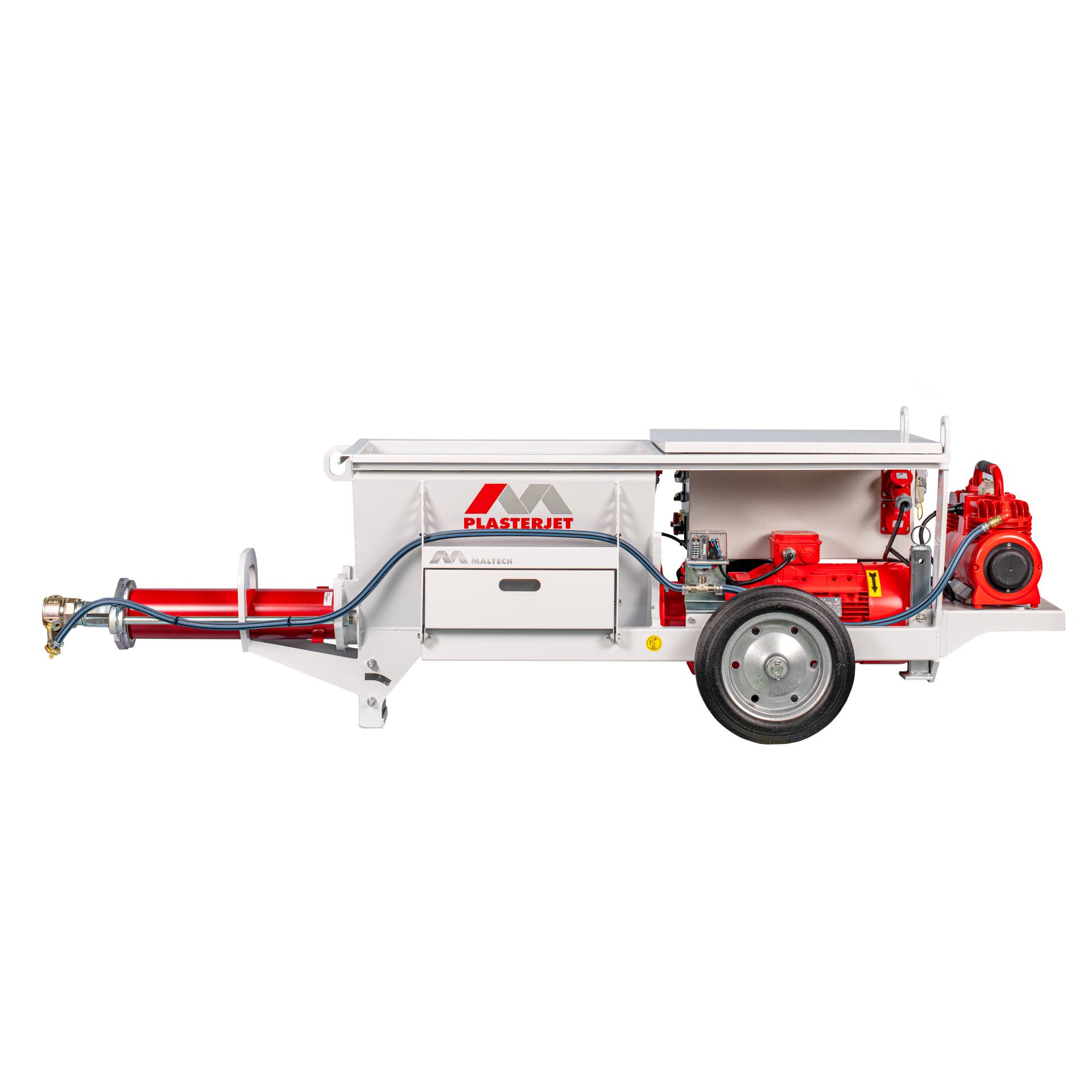

The conveying pump Plasterjet pumps spraying plasters, filling and anchor mortars, fire protection mortar, injection mortar, flow screeds. The use of several different pumps guarantees a broad range of performance. The conveying pump is available in the electromechanical version as well as with frequency inverter.

Facts
The multi-functional pump Plasterjet can be applied for plasterwork, renovation, injection and pump work.

Innovation
Continuous mixer mounted (optional)

Features
  • Upon request, a continuous or pan mixer can be mounted on top
  • Huge range of functions (installation of different pumps)
  • Maximum granulation 6 mm
Gearbox Standard - 7.5 kW 400 V
Pump
 50/7/R WF
Conveying capacity*
 approx. 10-40 l/min
Hose
 Ø 35 mm
Compressor
 V-Meko 400 l/min
Continuous mixer
 M25/4 4 kW 400 V
Mixing capacity*
 approx. 45 l/min

*Approximate values that may vary according to type and consistency of the material in use.

Width
650 mm
Length
2200 mm
Height
730 mm
Total weight
330 kg
Frame on 2 wheels
Control panel
Gear motor, variable speed


loader
