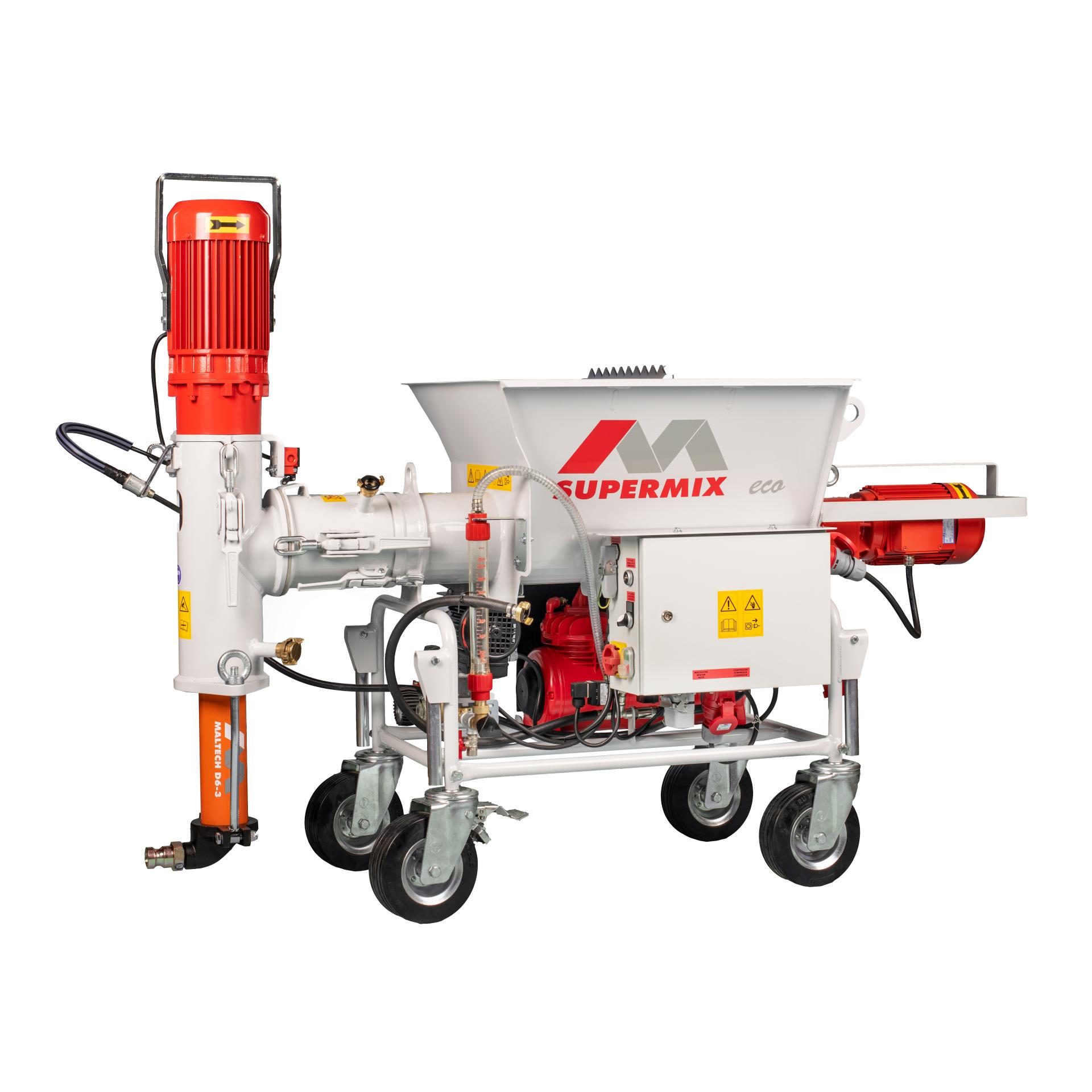

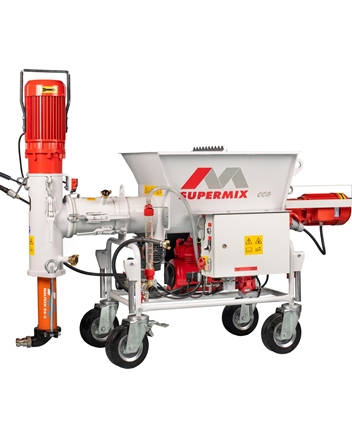

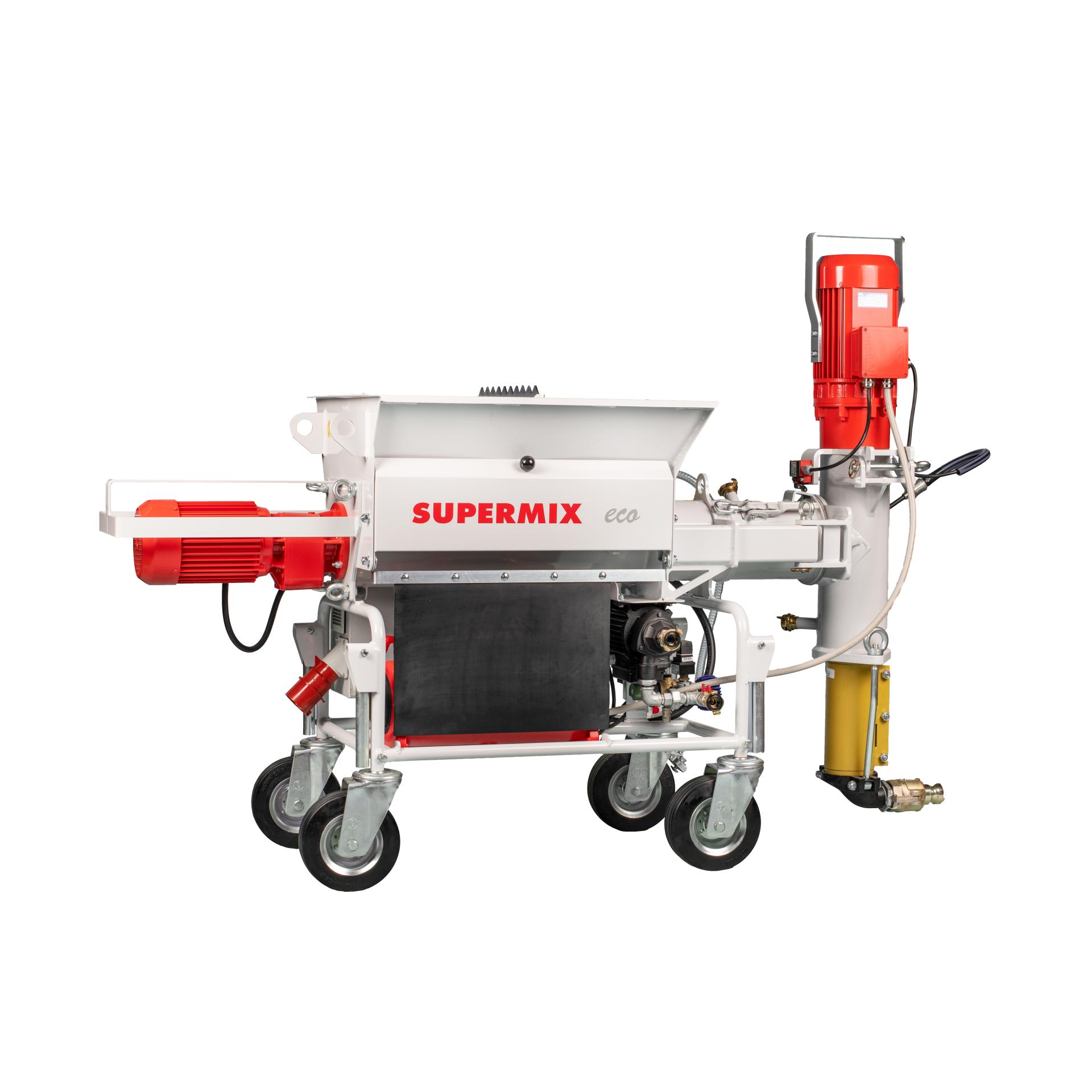

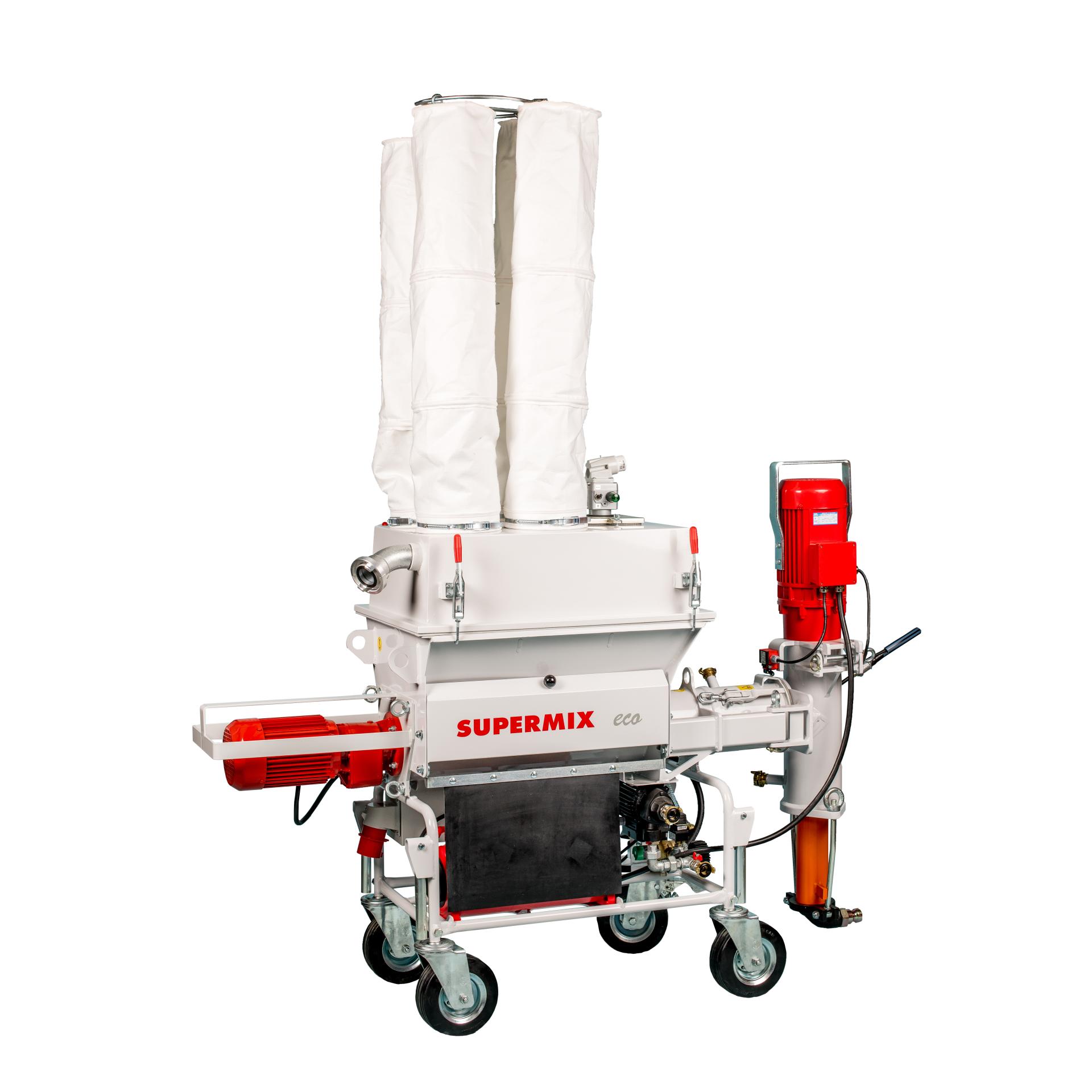

Supermix eco

Versatility has a name

With its double-mixing function, Supermix eco can be employed as a building site mixing pump as well as a continuous mixer. It is ideal for bags and silo materials, and the perfect solution for processing cement and lime plaster, flow screed, insulating mortar and other pre-mixed materials. The manufacturer, Maltech Srl, provides quality made in Italy.

Facts

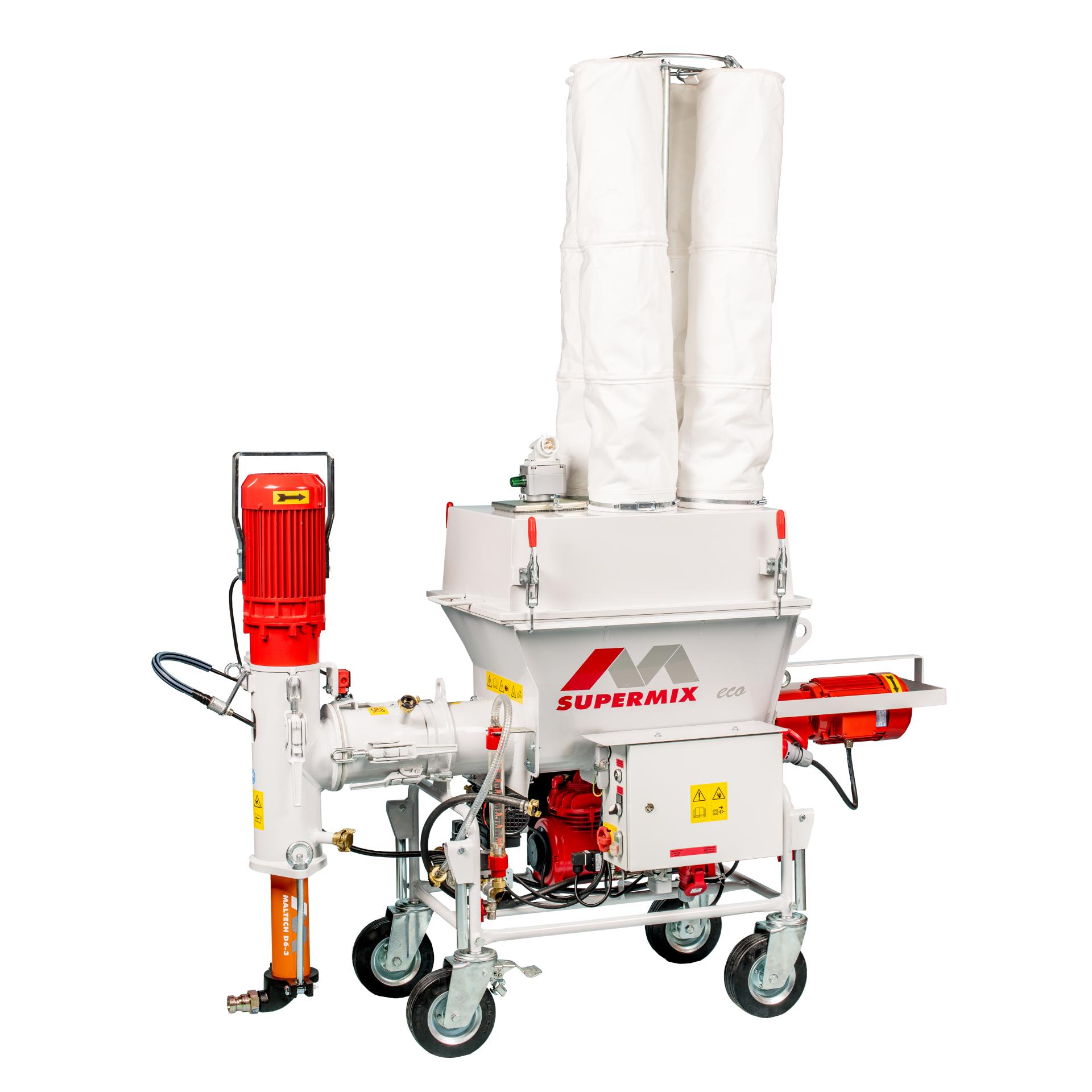

Building site mixing pump for bags and silo materials

Application:
Dry premixed mortar, lime cement plaster, flow screed, insulating mortar

Innovation
Double (combined) mixing, can be used both as pump and mixer

Features
  • Extremely high-quality material and processing

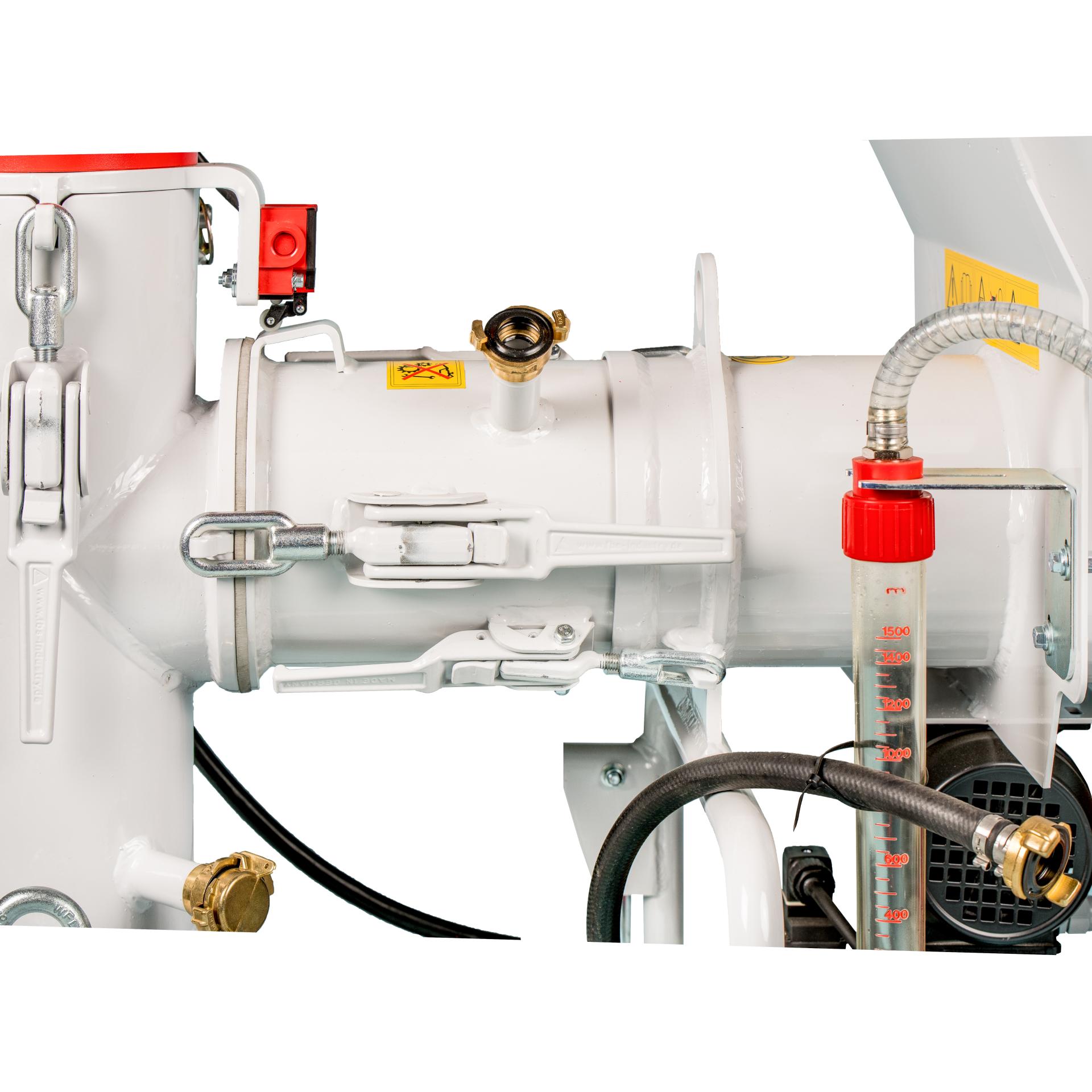

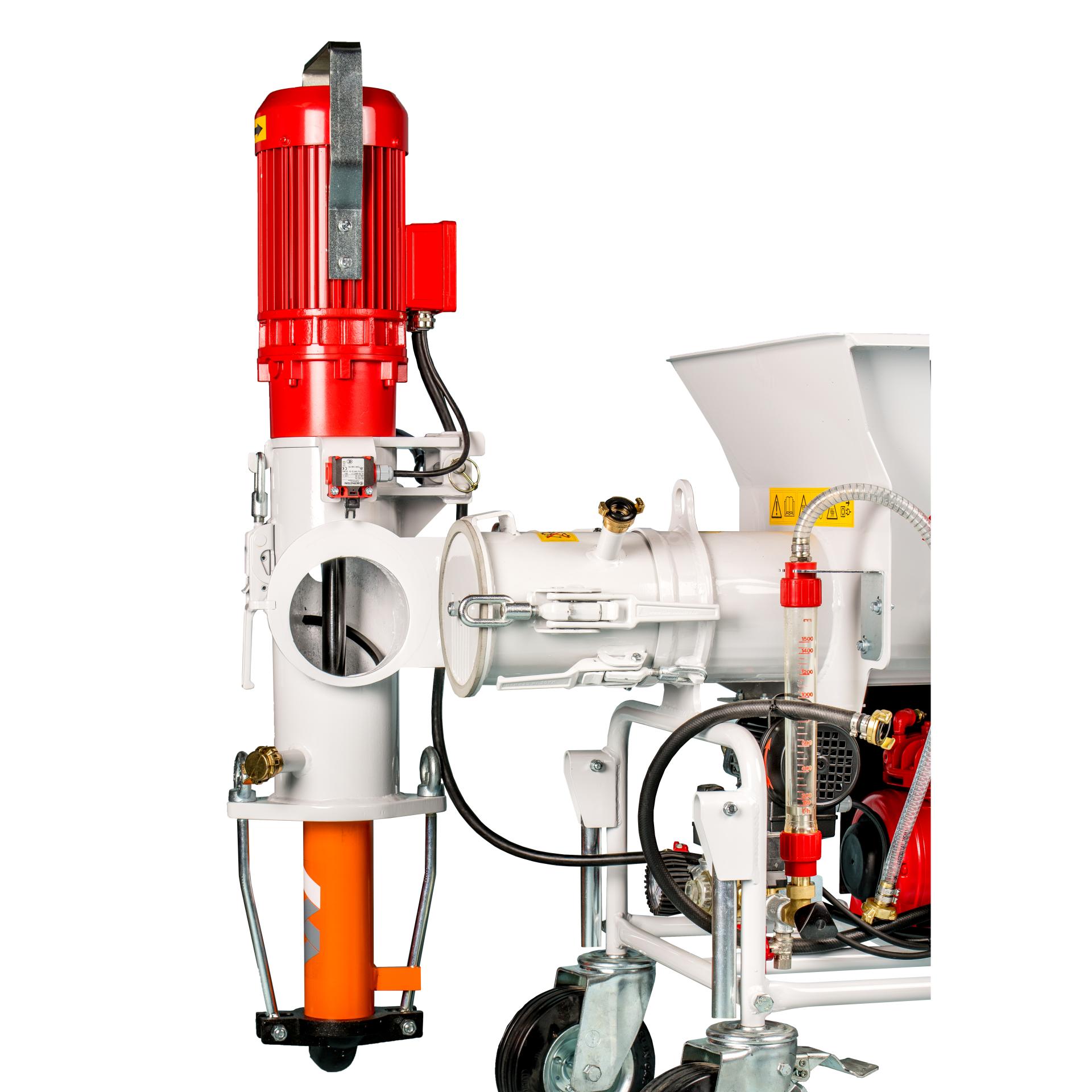

  • Double mixing chamber
  • Versatility: Supermix can be converted into a standard continuous mixer by removing the vertical mixing chamber
  • Minimum wear thanks to excellent adjustment of components
  • Optimised mixing shaft for combined mixing; top mixing quality guaranteed
  • The ideal multi-purpose machine for all construction sites
Conveying capacity*  approx. 5-30 l/min
Standard  approx. 25 l/min
Max range*  approx. 30 m

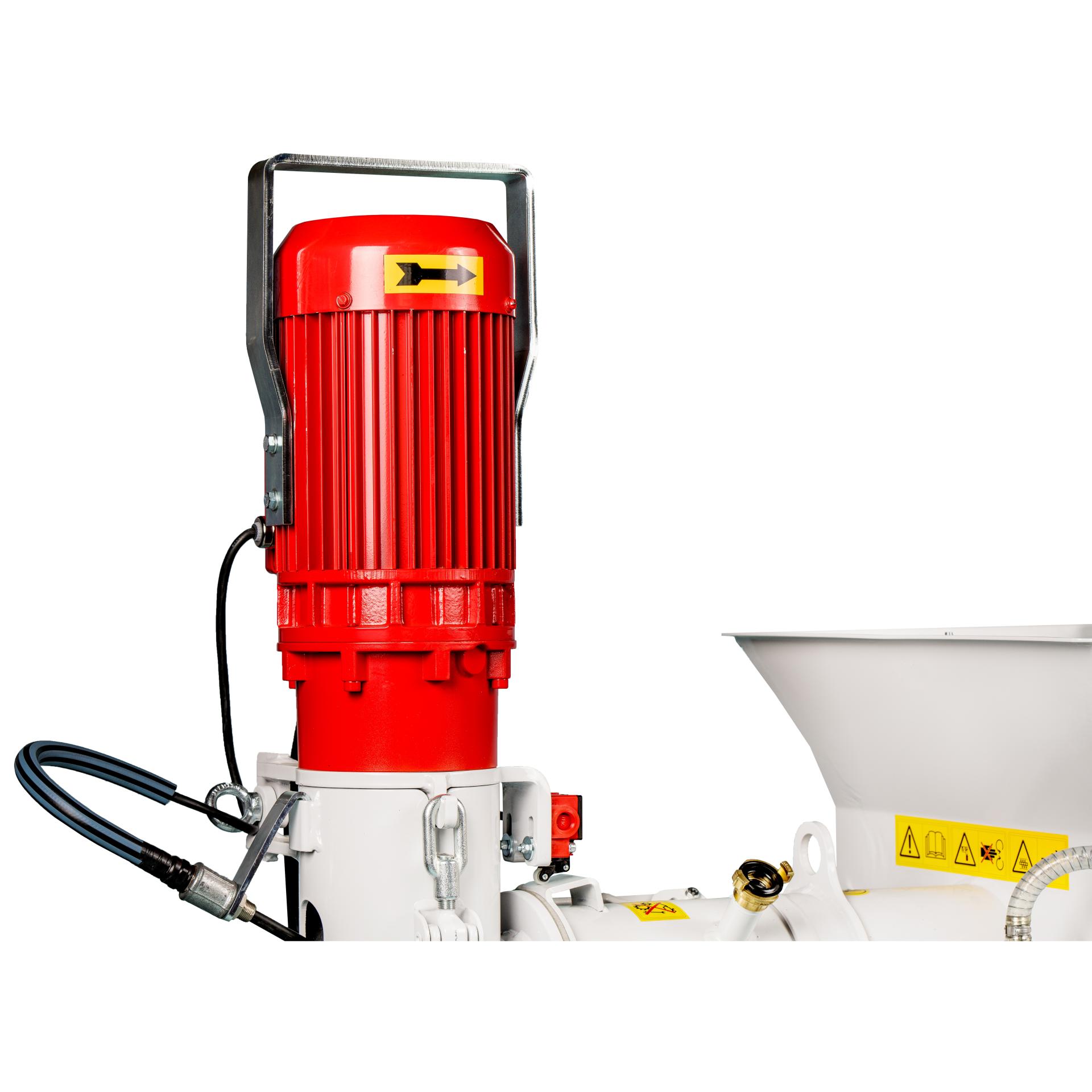

Pump engine  5.5 kW 400 V
Conveying engine
 3.0 kW 400 V
Compressor capacity  220 l/min

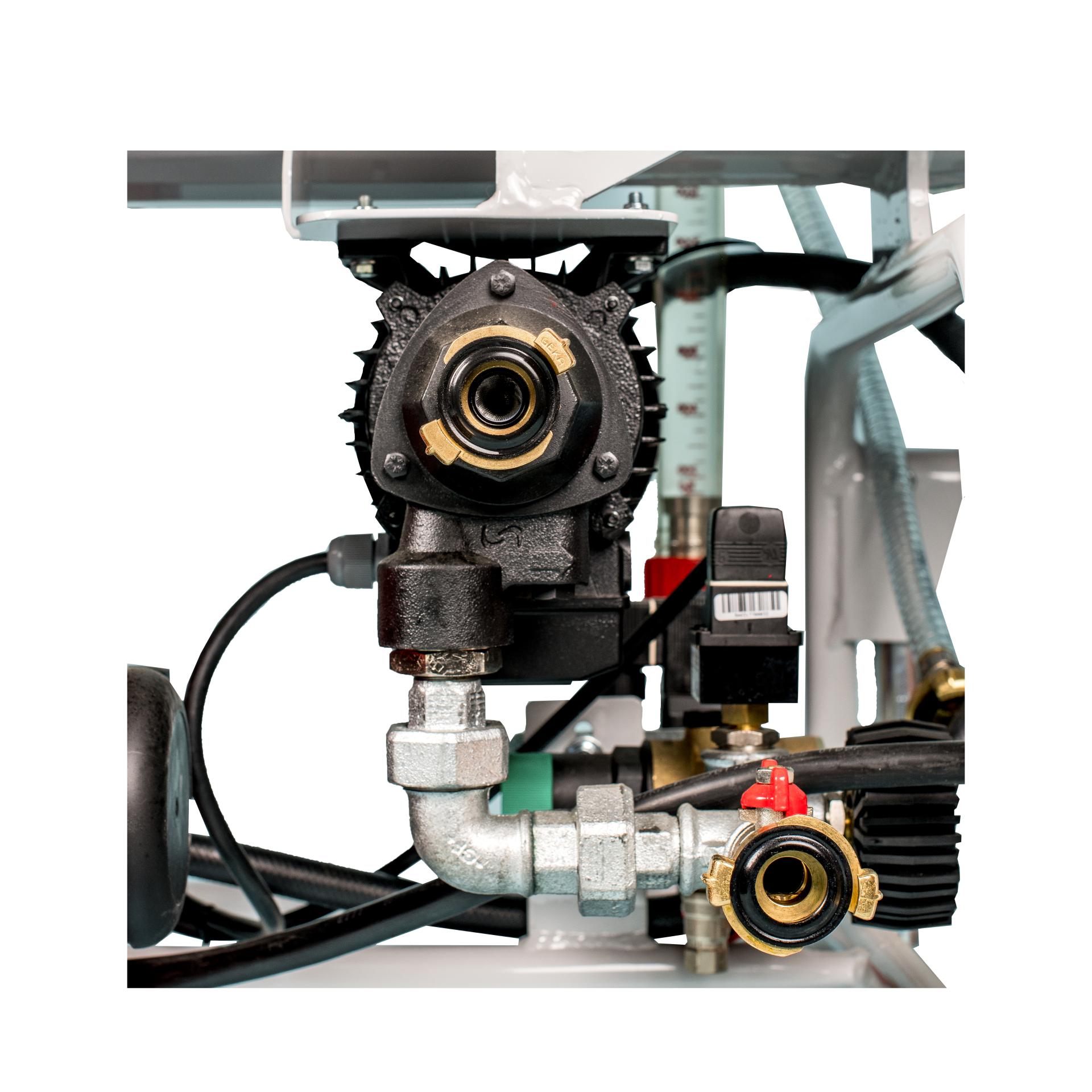

Min water pressure  3 bar
Voltage
 400 V 50 Hz
 IN  22 A

*Approximate values that may vary according to type and consistency of the material in use.

Width
600 mm
Length
1870 mm
Height
1310 mm
Height of opening
990 mm
Mortar hopper
approx. 85 l
Total weight
260 kg

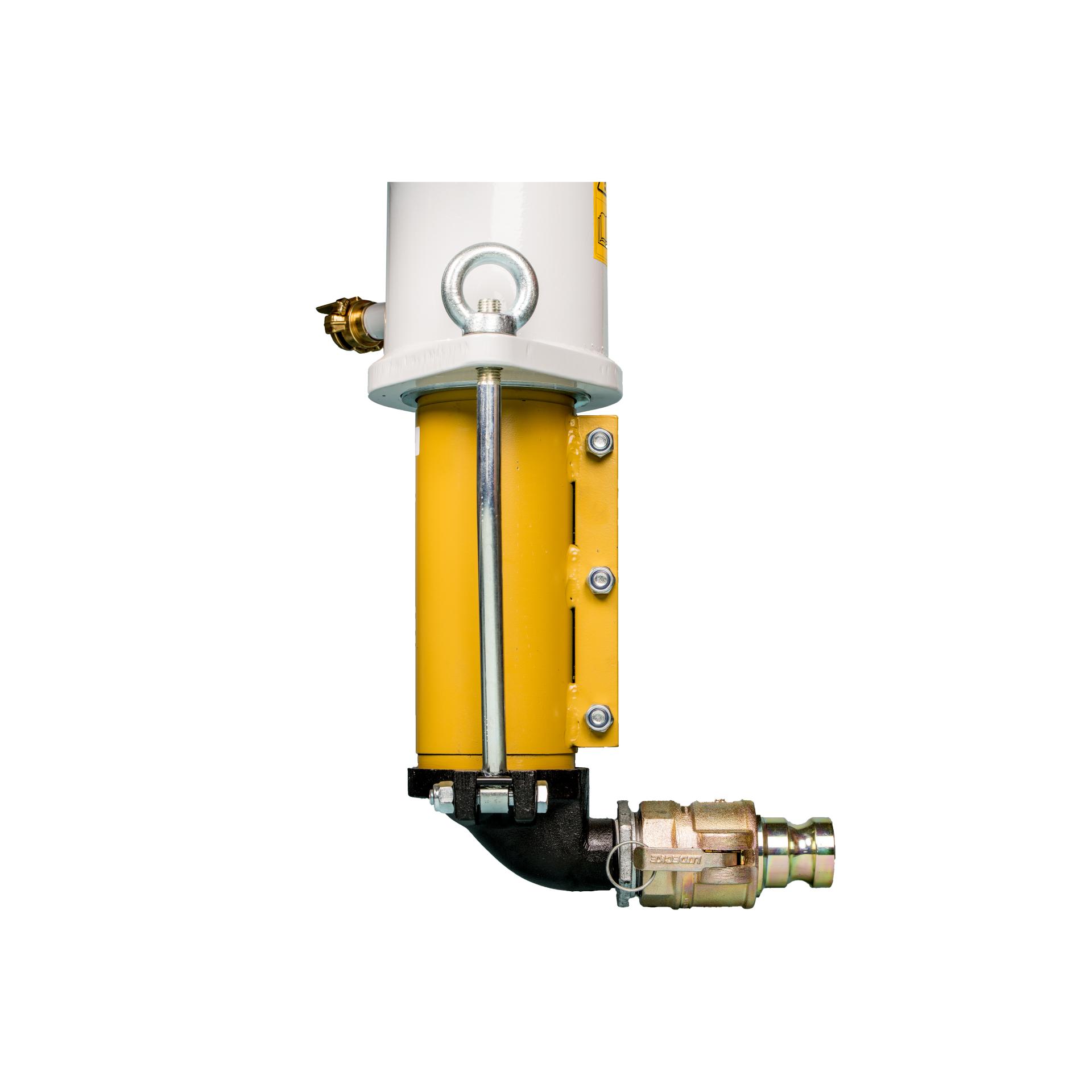

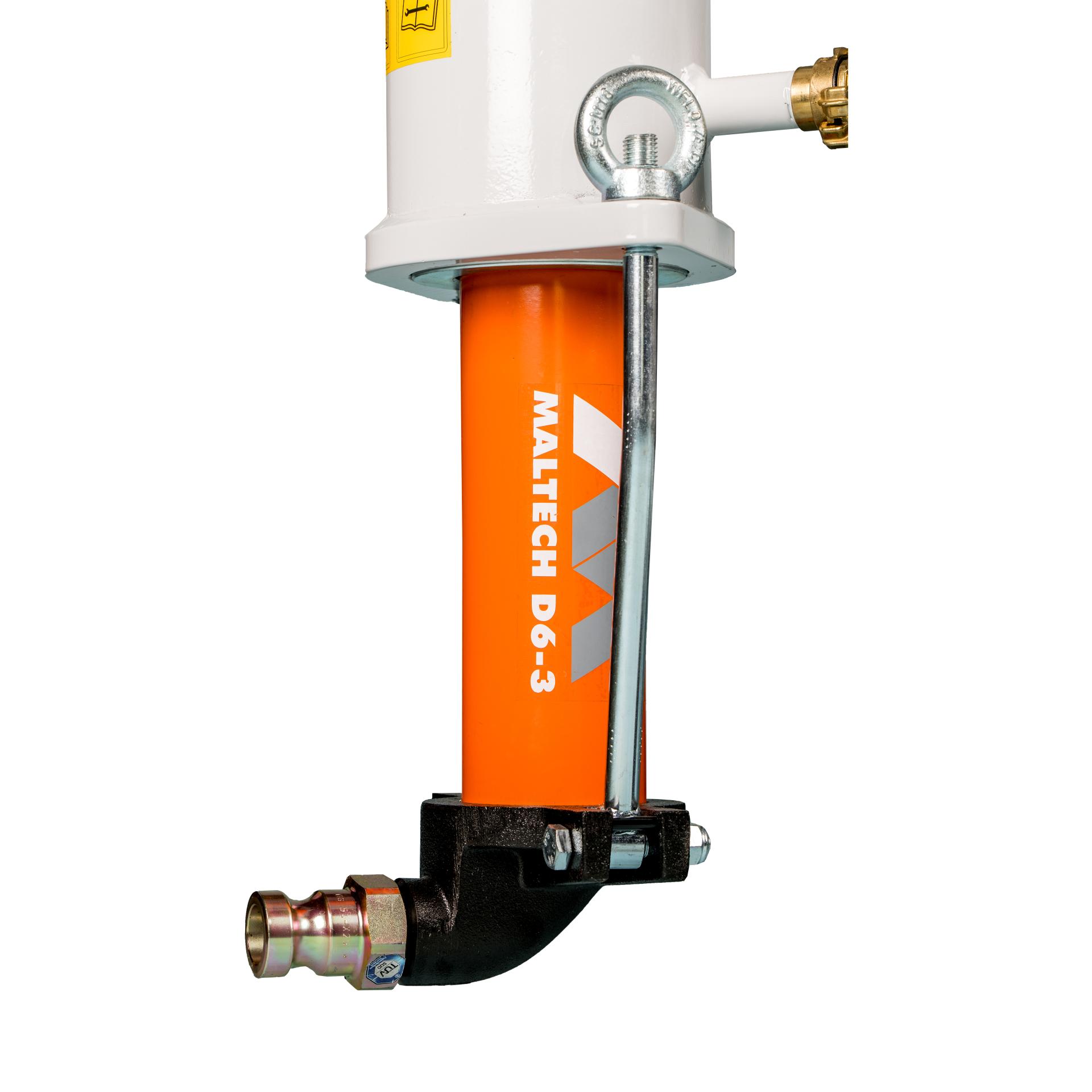

Screw pump set  D6-3
Spray gun
Mortar hose  15 m
 Air hose  15 m
Mixing tube  for D/R pumps
Control panel
 42 V
Cleaning tools

loader
